Kalamitki płaskie Typ T

Typ T1B

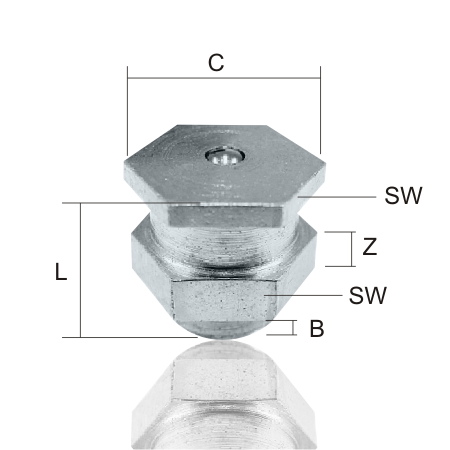

Kalamitka T1B 2
NazwaTypStal
ocynkowana
Stal
nierdzewna
MosiądzGwint
Z/ød
[mm]
Kształt
łba
SW
[mm]
øC
[mm]
L
[mm]
B
[mm]
T1/Bz gwintem16121
3301
--M6x1(M06)1516,5166
T1/Bz gwintem16121
6301
-16121
6304
M8x11516,5166
T1/Bz gwintem16121
7301
--M8x1,25(M08)1516,5166
T1/Bz gwintem16121
8301
16121
8302
16121
8304
M10x11516,5166
T1/Bz gwintem16122
1301
--M10x1,5(M10)1516,5166
T1/Bz gwintem16122
4301
16122
4302
16122
4304
M12x1,51516,5166
T1/Bz gwintem16123
1301
16123
1302

16123
1304

R1/8"(G1/8")1516,5166
T1/Bz gwintem16123
2301
16123
2304
16123
2304
R1/4"(G1/4")1616,5166
